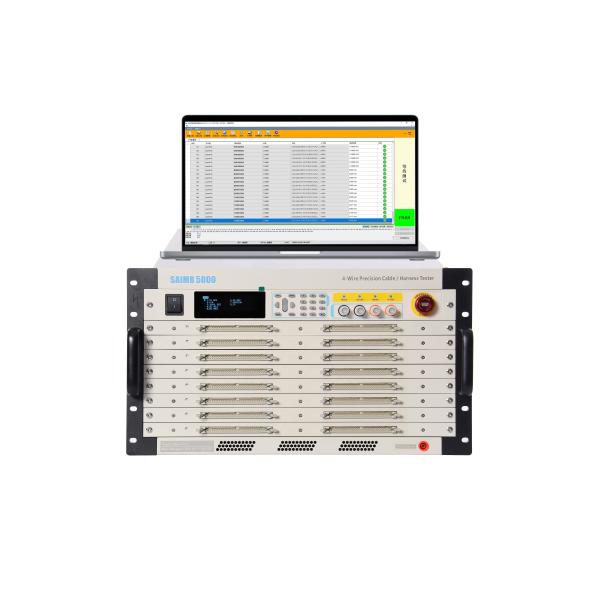

durable Wire Harness Tester DC 30v-1500v

Name: durable Wire Harness Tester DC 30v1500v
Brand: SAIMR
Price: 1 USD

Brand Name : SAIMR

Model Number : SAIMR5000

Certification : CE

Place of Origin : China

MOQ : 1 SET

Price : To be negotiated

Payment Terms : To be negotiated, T/T

Supply Ability : To be negotiated

Delivery Time : 30 days

Packaging Details : Packing in wooden crates

Test Project : Maximum Test Points, AC High Voltage, DC High Voltage, High Voltage Output Accuracy, High Voltage Measurement Accuracy, High Voltage Measurement Time, Short Circuit/Instantaneous Short Circuit/Fast Instantaneous Circuit Breaking, 2-Wire On Resistance, 4-Wi

DC : 30v-1500v

AC : 30V-1000V

Test Mode : Four/two-wire mixing test

Insulation Testing : 1MΩ-10GΩ（30v-1500v）

DC Resistance : 0.1Ω-1MΩ

External 4-wire DC resistance test : 10μΩ-100Ω

AC Leakage Current Test : 1μA-10mA

DC Leakage Current Test : 0.1μA-5mA

LCR : 50Hz-10kHz

ESD : 0-10V

Contact Now

The SAIMR5000 is a wire harness tester with the following steps for use:

Preparation: Check the package contents and ensure the instrument is not damaged. Connect the power cord, network cable, and test cable.
Power on and login: Press the POWER key to turn on the tester. Open the software on the computer and login with the default user ID admin and password 123456.
Create or load a project: Click New to create a new project or Load to load an existing project.
Project management: In the project management page, you can configure test items, test parameters, and test groups. You can also manage point information, self-learning information, NTC temperature resistance tables, test diagrams, and test file groups.
System settings: In the system settings page, you can configure test box and test channel settings, test parameter settings, file saving settings, code scanning gun settings, temperature channel settings, LCR port reset, IO port test, interprocess communication, plug-in management, firmware update, OS calibration, control card debugging, and leakage current self-test.
System self-test: Click Self-test to perform a system self-test.
Test mode: In the test mode page, you can start the test, pause or resume the test, or stop the test. You can also view the test results and perform single-line tests.
Find point: Click Find to find a point on the wire harness.
Multimeter: Click Multimeter to perform various tests on the wire harness.
Data query: Click Query to query and export test data.
User management: Click User to manage user accounts and permissions.
Change password: Click Password to change the login password.

Please note that the specific steps may vary depending on the version of the SAIMR5000 and the software being used. It is recommended to refer to the user manual for detailed instructions.
