Safety Regulation Withstanding Voltage Tester

Name: Safety Regulation Withstanding Voltage Tester
Brand: Microtest
Price: 1 USD

Brand Name : Microtest

Model Number : 7630

Certification : CE

Place of Origin : China

MOQ : 1 SET

Price : To be negotiated

Payment Terms : To be negotiated, T/T

Supply Ability : To be negotiated

Delivery Time : 30 days

Packaging Details : Packing in wooden crates

Name : Safety Regulation Withstanding Voltage Tester

ACwithstand test output voltage : 10v-5000v

DCwithstand test output voltage : 10v-5000v

AC Maximum rated current : 30mA

DC Maximum rated current : 10mA

Insulation impedance : 1-12000MΩ

resolution : 1MΩ

Contact Now

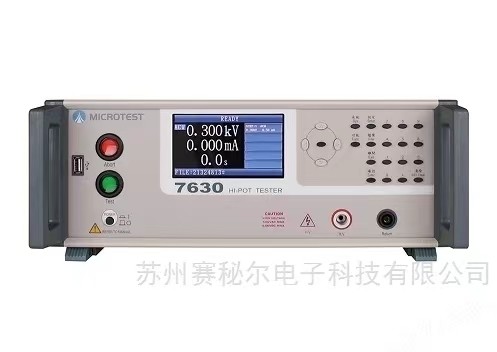

Safety Regulation Withstanding Voltage Tester

The safety tester has a high-efficiency PWM amplifier to isolate the influence of external voltage fluctuations, and outputs a stable high voltage, which enables "safe" and "reliable" measurements even in areas with high voltage fluctuations. The HT7630 uses a 32-bit True-RMS DSP (Digital Signal Processor) for its measurement technology, which is different from the ADC (Analog-to-Digital Converter Integrator) used for general measurement. In addition to the 32-bit data to improve the accuracy, the AC signal processing speed can also be increased by tens of times, accurate and stable.

Features

- 7630 is 2-channel test, 7631 is 8-channel test
- Provides AC withstanding voltage of 5000V, DC withstanding voltage of 6000V, and insulating impedance of 12GΩ.
- Arc detection function detects minor discharge from coils.
- Programmable creepage time (0.1s-10s)
- True RMS measurement circuit
- USB Host for storing configuration files and firmware updates.
- Remote control signal support
- 7631 can be externally connected to a 7508/7516(8/16) channel expansion scanner box for automotive wire or PCB in-vehicle testing.

model number of channels	7630 2		7631 8
AC high-voltage insulation test
output voltage	10V-5000V
Voltage resolution	1V
Voltage accuracy	±(3% of setting +5V)
output frequency	50/60Hz
Maximum rated current	10mA	30mA	30mA
Lease current range	0.001-31mA
Discharge current resolution	0.001mA
Precision of current leakage	±(3% of reading +10uA )
testing time	0.1-999s
Test the time resolution	0.1s
rise time	0.1-10s
Arc detection	Detection shift range from 0-20 (1 most sensitive)
DC high-voltage insulation test
output voltage	10V-6000V
Voltage resolution	1V
Voltage accuracy	±(3% of setting +5V)
Maximum rated current	10mA
Lease current range	0.001-11mA
Discharge current resolution	0.001mA
Precision of current leakage	±(3% of reading +10uA )
testing time	0.1-999s
Test the time resolution	0.1s
rise time	0.1-10s
Arc detection	Detection shift range from 0-10 (1 most sensitive)
Insulation impedance
output voltage	10-1000Vdc
Voltage resolution	1V
Voltage accuracy	±(3% of setting +5V)
Maximum rated current	1mA
Insulation impedance range	1-12000MΩ
Insulation impedance resolution	1MΩ
Insulation impedance accuracy	100-500V, 1-1000MΩ (±5% of reading +1MΩ) 500-1000V, 2-12000MΩ (±5% of reading +10MΩ)
testing time	0.1-999s
Test the time resolution	0.1s
rise time	0.1-10s
