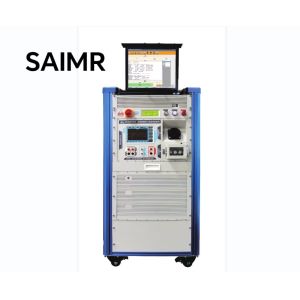

Charge Gun Mode II Test System
New energy coil turn-to-turn/layer-to-layer tester
1.Charge state test
2.Test to ground
3.Under-voltage and recovery test
4.Over-voltage and recovery test
5.Zero-fire reverse test
6.Leakage current test
7.Duty cycle test
8.Ground resistance test
9.Over-temperature protection and recovery
Energy PDU Electrical Control Box Tester, Automotive Door Panel Wiring Harness Test System, Automotive Connector Professional Test Equipment, Motor Servo Inverter Anchor Test System, Power Inverter Test System, Wire Connector Tester, Conduction Machine, Coil Turns Tester (Interlayer Tester), Multi-channel High-voltage Machine
Equipment Features:
- Computerized Operation: The operation of the equipment is controlled by a computer, ensuring precise and efficient testing.
- All Tests Completed at One Time: The equipment is capable of conducting all necessary tests simultaneously, saving time and improving efficiency.
- Connectable with MES System: It can be integrated with the Manufacturing Execution System (MES) for seamless data exchange and management.
- Open Test Platform: The test platform is open and flexible, allowing for easy customization and expansion.
- Scan Code Test: It supports scan code testing for quick and accurate identification of products.
- Barcode Labels Can Be Printed after Testing: After the test is completed, barcode labels can be printed for traceability and identification purposes.
- Traceability of Test Data: The test data is traceable, ensuring the quality and reliability of the products.
Service is the crucial foundation of our company. Therefore, our products are always at the forefront of technology, and our service is based on providing customers with high-quality technical solutions and consulting. We offer a wide range of products and have been widely praised for the quality of our after-sales service!
Self-developed and Produced: Battery Internal Resistance Tester; DC Resistance Tester; AC Resistance Tester; DC Electronic Load; Programmable DC Power Supply; Charging Gun Test System; High-voltage Tester; Connector Tester; PDU Electrical Box Test; Energy Charging Gun Harness Safety Tester, Mode Two Function Test System, Energy PDU Electrical Box Tester, Automotive Door Panel Wiring Harness Test System, Automotive Connector Professional Test Equipment, Motor Servo Inverter Test System, Power Inverter Test System, Wire Connector Tester, Multi-circuit Temperature Tester; Insulation Resistance Tester; Precision LCR Tester; Capacitor Leakage Current Tester; Photovoltaic Ground Resistance Tester; Photovoltaic Withstand Voltage Tester; Battery Pole Plate Short Circuit Tester.
If you wish to purchase a product, all you need to do is send an email or make a phone call, and we will handle all the subsequent work for you. In short, as long as you choose us, you can rest assured.
Ten Advantageous Features:
- Overcurrent Protection
- Leakage Protection
- Over-temperature Protection
- Voltage Insulation
- Indicator Light Confirmation
- Equipment Standard: gb/t 18487.1 - 2.15, gb/t 20234.1 - 2015, gb/t 20234.2 - 2015
Software Features:
- Scanning, Printing, Reporting, Archiving, Database
- Parameter Setting, MES Docking, User Rights Management
Laboratory Features:
- Over Current Protection: Pull the load current from A to the specified current B according to the slope, record the shutdown current and time. Setting conditions: current A / current B / slope of rise. Test results: shutdown current point / shutdown time / cut-off waveforms.
- Short-circuit Protection: Pull the load current to rise from A to the specified current B according to the slope, record the shutdown current and time. Setting condition: current A / current B / rise slope. Test results: shutdown voltage point / shutdown time / cutoff waveforms.
- Over Voltage Test: Rise from the set voltage A to the set voltage B according to the slope, record the shutdown voltage and time. Setting conditions: current A / current B / rise slope. Test result: shutdown voltage point / shutdown time / shutdown waveform. Reference time: 5 - 10S. Single-station / Double-station / Multiple-station.
- Under Voltage Test: Decrease from the set voltage A to the set voltage B according to the slope, record the shutdown voltage and time. Setting conditions: current A / current B / decrease slope. Test result: shutdown voltage point / shutdown time / shutdown waveform. Reference time: 5 - 10S.
- Leakage Current Test: Starting from the beginning of the leakage current, it can analyze the actual value of the leakage current of the product protection.
| |
| state | set value | operate condition | Time delay time |
| power on self-checking | Self-inspection success | Enter the waiting state | 1S |
| Self-inspection failure | failure warning | 0.1S |
| charge sequential control | Voltage value of detection point 1:6±0.8V-12V PWM | Charging is in progress and the relay closes | 1S |
| Voltage value of detection point 1:9±0.8V-12V PWM | Charging is complete, and the relay is disconnected | 1S |
| Voltage value of detection point 1:12±0.8V level | The socket is not connected, and the relay is disconnected | 1S |
| Voltage value of detection point 1: Other | Communication fault, and the relay is disconnected | 1S |
 Ground | landing | Relay closed | 1S |
| unearthed | Disconnect the broken electrical appliances | 1S |
| overvoltage | Line overvoltage u 258 ± 10V | The relay is disconnected, closed to 254 ± 10V, delay 5 ± 1s, infinite cycle | 0.1S |
| The line voltage is normal from 176 to 264 V | The relay closes and enters the charging state | 1S |
| undervoltage | Line voltage is 176V | The relay is disconnected to 196 ± 10V, delay (5 ± 1) s and closed, infinite cycle | 1S |
| The line voltage is normal from 176 to 264 V | The relay closes and enters the charging state | 1S |
| overcurrent | Line current is at 8.4A <110A±0.2A | The relay is disconnected, the fault light is on, and the relay is automatically restored after 10s. If the current is still permanently disconnected after 3 cycles, and the normal working state is restored after lifting | 30S |
| Line current is at 10A <112A±0.2A | The relay is disconnected, the fault light is on, and it is automatically restored after 10s. After the cycle is still over twice, the current is permanently disconnected, and the normal working state is restored after lifting | 10S |
| Line current is> 12A±0.2A | The relay shall be cut off immediately, removed and switched back to normal operation | 2S |
| Line current is <8A | Relay closed | 0.1S |
| short | Line current is> 22A | The relay cuts off immediately | 0.1S |
| leakage of | Leakage current of> 30 mA | The relay cuts off immediately | 0.1S |
| There is no leakage on the line | The relay closes and enters the charging state | 0.1S |
| Overtemperature protection | breadboard | Temperature over 85℃ and continued for 3S | The relay cuts off immediately | 2S |
| Temperature was below 65℃ and continued for 3S | The relay is closed and the to condition | 2S |
 | Temperature over 85℃ and continued for 3S | The relay cuts off immediately | 2S |
| Temperature was below 65℃ and continued for 3S | The relay is closed and the to condition | 2S |
| Pressure-resistant insulation test |
| high-voltage insulation test | AC :3.5KV DC:5KV IR:1KV |
| Leakage current of 10mA |
